Cross-Engine Data Diff & Verification

Added in v1.5.0

DeepDiff DB v1.5.0 introduces automatic identifier case folding for cross-engine schema discovery and row-level diffing.

DeepDiff DB supports cross-engine data diffing and migration verification, allowing you to compare schemas and row data between completely different database engines (such as PostgreSQL $\leftrightarrow$ Oracle, MySQL $\leftrightarrow$ PostgreSQL, or SQLite $\leftrightarrow$ MSSQL).

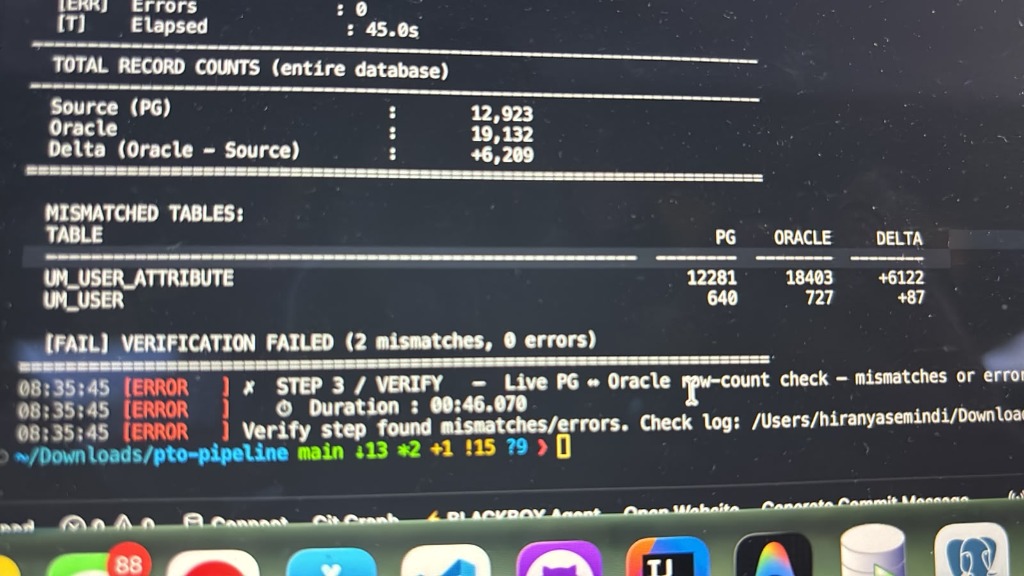

Live Migration Pipeline Mismatch

The Cross-Engine Challenge: Identifier Case Folding​

When migrating data between database engines (for example, in an enterprise ETL pipeline migrating from PostgreSQL to Oracle), automated row-count and checksum verification frequently fails or reports false positives:

TOTAL RECORD COUNTS (entire database)
Source (PG)            : 12,923
Oracle                 : 19,132
Delta (Oracle - Source): +6,209

MISMATCHED TABLES:
TABLE                  PG      ORACLE   DELTA
------------------------------------------------
UM_USER_ATTRIBUTE      12281   18403    +6122
UM_USER                640     727      +87

Why Naive Comparisons Fail​

  1. Identifier Folding Discrepancies:

    • PostgreSQL folds unquoted identifiers to lowercase (um_user_attribute, um_user).
    • Oracle folds unquoted identifiers to UPPERCASE (UM_USER_ATTRIBUTE, UM_USER).
    • MySQL on Linux defaults to case-sensitive table names, while on Windows/macOS it is case-insensitive.
    • Traditional tools comparing by exact table name ("um_user" == "UM_USER") find 0 matching tables and report "No differences found", completely missing thousands of drifted rows!

  2. Column Quoting and Dialect Differences:

    • Querying a PostgreSQL table requires double quotes for mixed-case or lowercase identifiers: SELECT "id", "email" FROM "customers".
    • Querying Oracle requires uppercase or quoted identifiers: SELECT "ID", "EMAIL" FROM "CUSTOMERS".
    • SQLite and MySQL use backticks or brackets.

How DeepDiff DB Solves This​

DeepDiff DB introduces engine-aware canonical identifier folding and dialect-specific query drivers:

┌─────────────────────────┐               ┌─────────────────────────┐
│  PostgreSQL (Source)    │               │     Oracle (Target)     │
│  "um_user" (lowercase)  │               │  "UM_USER" (UPPERCASE)  │
└────────────┬────────────┘               └────────────┬────────────┘
             │                                         │
             ▼                                         ▼
   Canonical: "um_user"   ◄──────────────────►   Canonical: "um_user"
                          (Matched & Paired)
                                   │
                                   ▼
             ┌─────────────────────────────────────────┐
             │       Keyset-Paginated Row Hashing       │
             │  PostgreSQL driver: SELECT "id"...      │
             │  Oracle driver:     SELECT "ID"...      │
             └─────────────────────┬───────────────────┘
                                   │
                                   ▼
             ┌─────────────────────────────────────────┐
             │       Side-by-Side Column Diffing       │
             │     email: dan@example.com (*)          │
             │     email: dan+new@example.com          │
             └─────────────────────────────────────────┘
  1. Case-Insensitive Table Discovery: DeepDiff matches tables across engines using case-folded canonical names (schema.CanonicalIdent).
  2. Preserved Dialect Execution: Each database connection uses its own driver and dialect rules, ensuring queries against PostgreSQL use correct lowercase identifiers while queries against Oracle use uppercase identifiers.
  3. Column-Level Value Alignment: Columns are aligned canonically, so email in PostgreSQL is compared directly with EMAIL in Oracle regardless of catalog casing.

Inspecting Changed Rows (row-diff)​

Once table differences or conflicts are detected, use the row-diff command (or pass --row-diff to diff) to inspect exactly what changed at the column level:

row-diff Terminal Output

# Compare PostgreSQL against Oracle with column-level row inspection
deepdiffdb diff --config deepdiffdb.config.yaml --row-diff

# Or inspect a specific table and primary key directly
deepdiffdb row-diff --table customers --key 4

Terminal output highlights differing columns with an asterisk (*):

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Table: customers | Key: 4 (updated)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  Column               | Production (PostgreSQL)  | Development (Oracle)
  ---------------------+--------------------------+--------------------------
  country              | FR                       | FR
  email                | dan@example.com          | dan+new@example.com      *
  id                   | 4                        | 4
  name                 | Dan                      | Dan

  * indicates columns that differ
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Interactive HTML Report​

→ View Live Interactive Report

Generating an HTML report (deepdiffdb diff --html) provides an interactive side-by-side inspection view:

  • Data Changes Tab: Opens automatically when data drift exists. Clicking any table displays both key summaries and the complete column comparison table for every modified row.
  • Row Data Tab: Provides a dedicated card view of every changed row across all tables with real-time table filtering.
  • Conflicts Tab: Displays conflicting keys with source and target hash values, resolution strategy, and side-by-side column values.
deepdiffdb diff --config deepdiffdb.config.yaml --html
open diff-output/report.html

Ready-to-Run Sample​

Check out Sample 18: Cross-Engine Row Diff & Verification in the repository, which sets up PostgreSQL and Oracle containers with pre-seeded data mismatches to test cross-engine verification.
